60w high power outdoor solar streetlight
waterproof IP66 LED Solar Street lighting manufacture

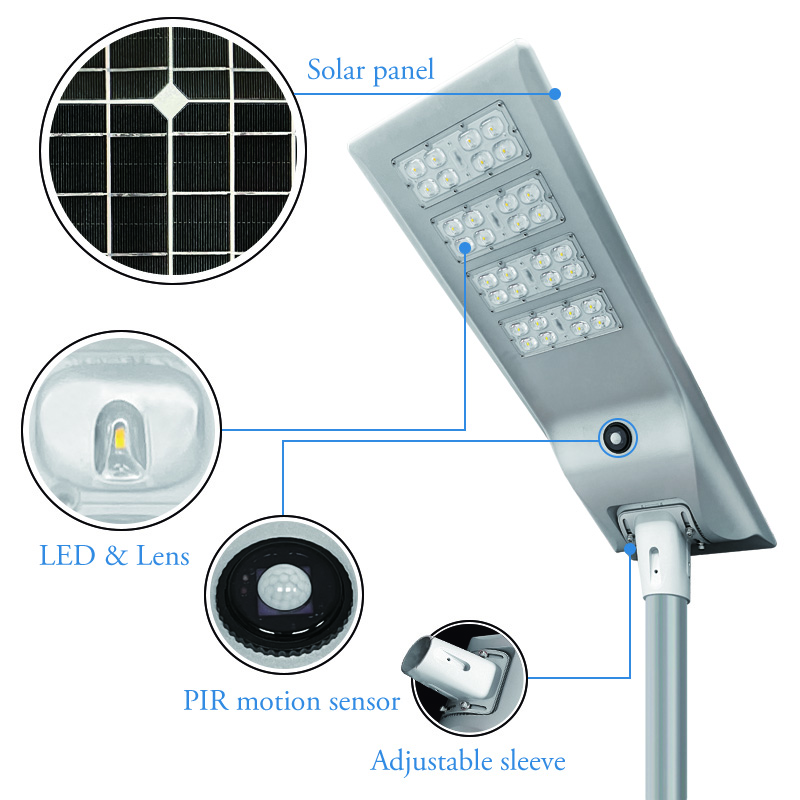

Features:
- 1. Integrated design, making full use of solar resources, simple, stylish, light, and extremely convenient to install. The integrated solar streetlight does not need to be pulled,and two or three people can install one in ten minutes. It provides a variety of installation methods. The lamp post is made from local materials.Iron pillars, wood, bamboo, plastic, etc., low cost.
- 2. Using solar power supply and LED lighting, the two solutions are perfectly combined to save electricity, protect the earth's environment, and save energy.
- 3. Large-capacity and long-life lithium iron phosphate battery is adopted, with a theoretical service life of 5 years, good high-temperature characteristics and long service life,
- ensuring the service life of the entire product.
- 4. Alloy material is used as the main structure, which has good anti-rust and anti-corrosion functions; rainproof structure, safe and reliable.
- 5. Bulit-in with PIR sensor, when someone approaches, the light will be fully on for 60 seconds. When the person walks away, the light will automatically reduce to 50% brightness, effectively saving electricity energy.
Use:
This product is easy to use, with one-button operation, as long as the switch is turned on, the product can work normally without adjustment.
Note:
- 1. Do not disassemble the product without the guidance of our technical personnel;
- 2. When installing the product, try to avoid trees, buildings, etc.
| Model: | EK-SSL03-L01 | EK-SSL03-L02 | EK-SSL03-L03 |
| Mono zonnepaneel | 6V 40W | 6V 50W | 6V 60W |
| Batterijcapaciteit | 3,2V 42Ah | 3,2V 54Ah | 3,2V 60Ah |
| GDT | 2700K-6500K | 2700K-6500K | 2700K-6500K |
| Helderheid | 180LM/W | 180LM/W | 180LM/W |
| Lichtstroom | 2400-2600LM | 3500-3600LM | 5900-6000LM |
| Oplaadtijd | 6~8 uur bij fel zonlicht | 6~8 uur bij fel zonlicht | 6~8 uur bij fel zonlicht |
| Werktijd | 12-15 uur (5-7 regenachtige dagen) | 12-15 uur (5-7 regenachtige dagen) | 12-15 uur (5-7 regenachtige dagen) |
| Controlemodus | Tijdcontrole + Magnetroninductie of infraroodinductie | Tijdcontrole + Magnetroninductie of infraroodinductie | Tijdcontrole + Magnetroninductie of infraroodinductie |
| IP-classificatie | IP66 | IP66 | IP66 |
| Montagehoogte | 6-8M | 6-8M | 6-8M |
| Ruimte tussen 2 lampen inbouwen | 20-30M | 20-30M | 20-30M |
| Montagegat | φ78mm | φ78mm | φ78mm |
| Behuizing afwerking | Polyester poedercoating | Polyester poedercoating | Polyester poedercoating |
| Standaardkleur(en) | Zwart/Zilver Gra | Zwart/Zilver Gra | Zwart/Zilver Gra |
| Materialen | Aluminiumlegering Gehard glas Polycarbonaat | Aluminiumlegering Gehard glas Polycarbonaat | Aluminiumlegering Gehard glas Polycarbonaat |
| Certificaten | CE/RoHS | CE/RoHS | CE/RoHS |
| Garantie | 5 jaar | 5 jaar | 5 jaar |
Dissemble illustration
Application:
IP66: The dust density completely prevents the foreign matter invasion and may completely prevent the dust invasion,Prevents the spray water invasion, prevents from all directions by the nozzle spray water enters the lamps to cause the damage.
IK08: 10J Slagkracht komt overeen met de slag van een voorwerp van 5 kg dat van een hoogte van 200 mm op een oppervlak valt.
