Gegoten aluminium materiaal Geïntegreerde LED-verlichting, LED-lichtonderdelen met hoge lumenhelderheid met PCB, lenskeuze
Model No： EK-LD03
Matchvermogen: 60W/180W
Bevat accessoires: aluminium behuizing, gehard glas, montageschroeven, lantaarnpaal,
Artikel: IP65 LED-straatverlichtingsbehuizing
Vermogen: 60W / 180W
Ingangsspanning: AC220 - 240V, 50/60 Hz
Kleur kiezen: donkergrijs, lichtgrijs, zwart, aangepast enz
Levensduur: ≥50000 uur
Producteigenschappen
- Die casting Aluminum material body with high quality surface treatment powder painting black color ,gray color or customized as clients Requirements
- COB Design with different power from 40w--140w , high performance on Lighting efficiency, Match your project Main Road and small city street side,
- High waterproof protect IP65 IP66, suit to projects and install near sea city or road lighting, IK08/IK09 shock proof grade ,great quality surface powder dusting to guarantee long lifetime of the lighting use,
- Good dissipation line design to help the working lighting Efficient heat dissipation Cooling, During the same size empty housing do bigger power lighting to Saving your cost and Maintenance fee.
Hele Serie & Specificatie
| Model code | Behuizingsgrootte (Mm) | Overeenkomen met kracht | Lantaarnpaal (Mm) | Gewicht (kg) | Accessoires |
| EK-GLH02Type A | Φ460*453 | 50W-80W | 76 | 5.7 | Heatsink body,armoured glass, Waterproof Rubber Ring，304 s/s screws, |
| EK-GLH02Type B | Φ460*515 | 50W-80W | 76 | 5.4 | |
| EK-GLH02Type B | Φ460*194 | 50W-80W | 60 | 4.8 | |
| Legend: Std = IP65 IK08 Testing certificates | |||||
| Materiaal behuizing: gegoten aluminium + gepantserd glas | |||||
| Werktemperatuur -35℃~50℃ 20%~90% HR | |||||

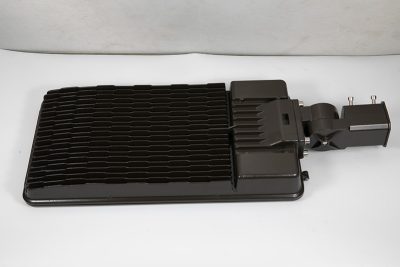

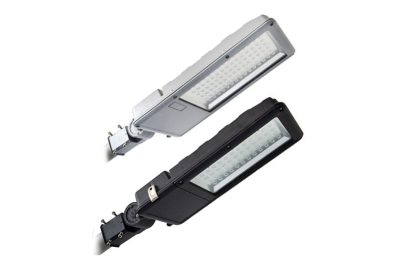

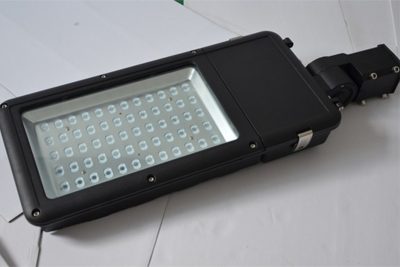

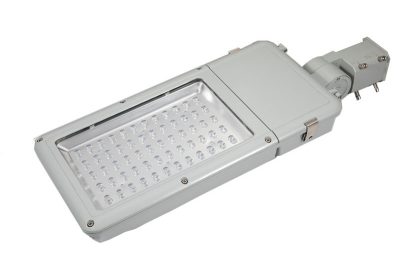

LED Tuinverlichting buiten 60w 80w
EK-LD03
IP65/IP66 , IK09/IK10,
Materiaal: ADC12 aluminium
Kleur van de behuizing: grijs, zwart,
