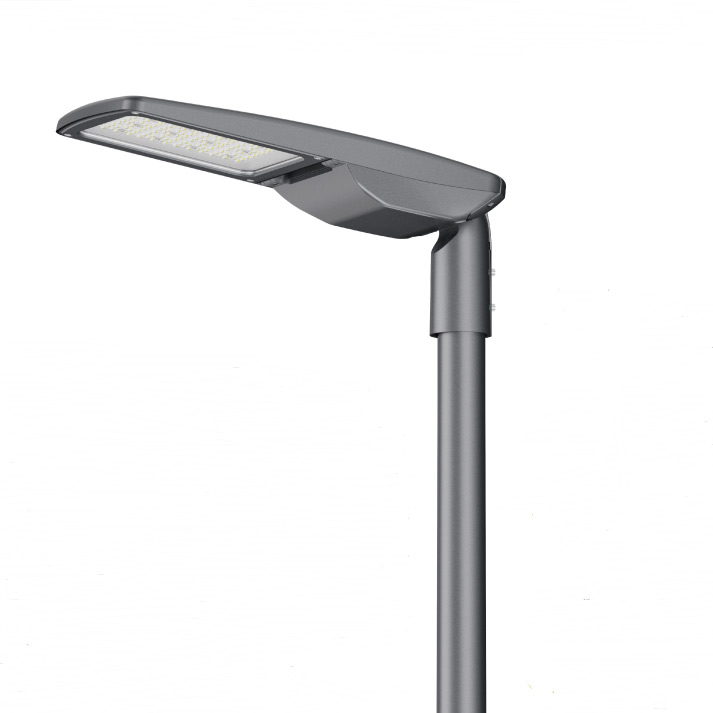

led street light fixture OEM ODM service aluminum die cast for lighting

Specificatie

Product Datasheet
Item nr.EK-BL05(mini)EK-BL05(SS)EK-BL05(S)EK-BL05(M)EK-BL05(L)
Related Power60w100w150w200w240w
Product Size mm572*230*97mm642*250*97mm693*250*97mm727*290*97mm828*290*97mm
Installation Height6-8m6-808-10m8-12m8-12m
Input Voltage100-305V AC
Frequency Rang50/60Hz.
Power Factor (PF)>95
Type of Light SourceLUMELEDS/ CREE
Luminous150lm/w
Color Temperature3000k-6000k
Color Rendering IndexCRI>70
IP/IKIP65/IK08
Werkomgeving-20℃~+50℃,10%~90%RH
Lifespan L70 at 25℃>50,000hrs
Mounting TypeSide entry or Vertical pole mounted ±15°
Dimmable1-10V Dimming /Timer Dimming/Dali Dimming
Protection ClassClass Ⅰ(Default)/Class Ⅱ
StandardsCE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP66, IK08
Available on requestSolar Compatible, NEMA socket (3/5/7pins), ZHAGA socket, short cap, Photocell, Motion sensor, NTC, OLC, DALI Dimming
Reasonable toleranceWatt: ±10%,CCT: ±500K, Lumen efficiency: ±5%

China Factory Led Street Light Housing Aluminum Pressure Die Casting outdoor light empty casing.

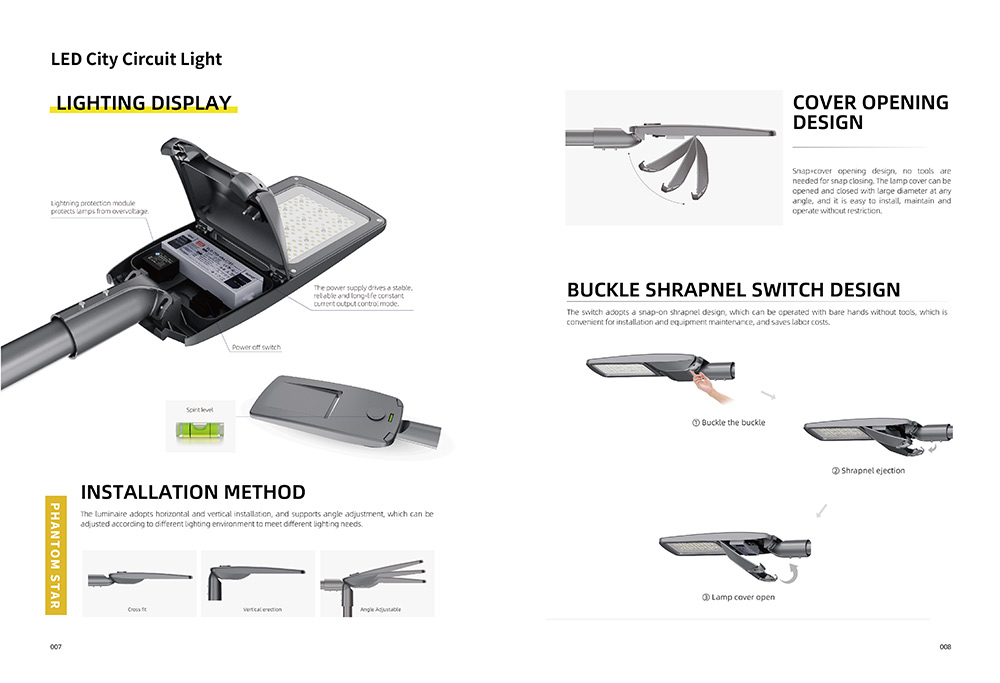

LED City Circuit Light LED Street Light Installation Method
led city road light adopts a snap on shrapnel design which can be operated with bare hands without tools and is convenient for installation and equipment maintenance saves labor costs.

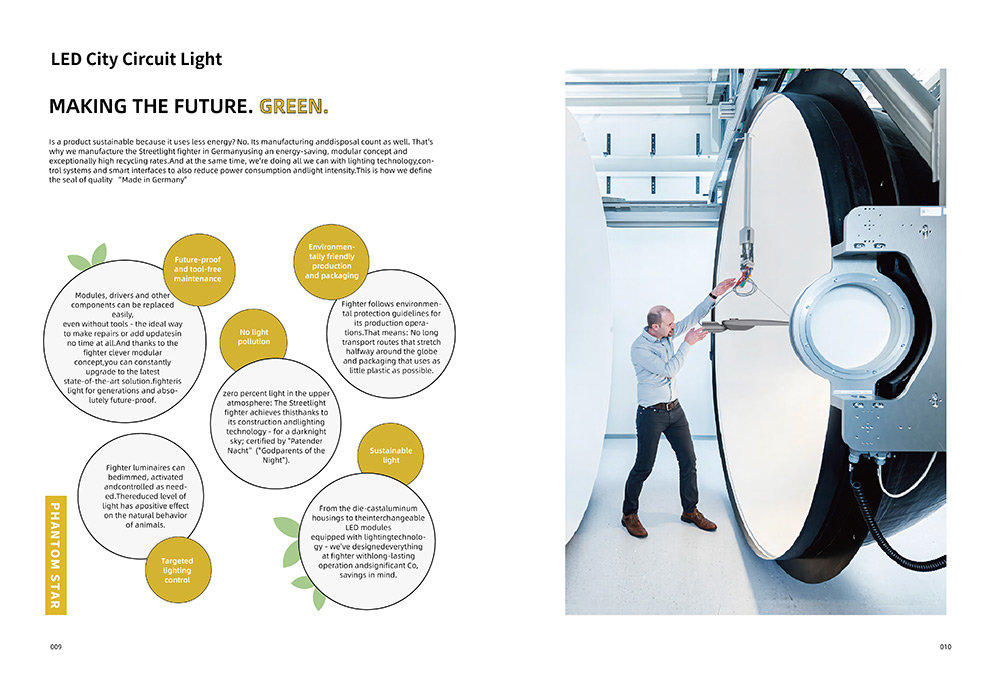

1.Future Proof and tool free maintenance,
2.Environmentally friendly production and packaging
3.No light pollution
4.Sustainable light targeted lighting control

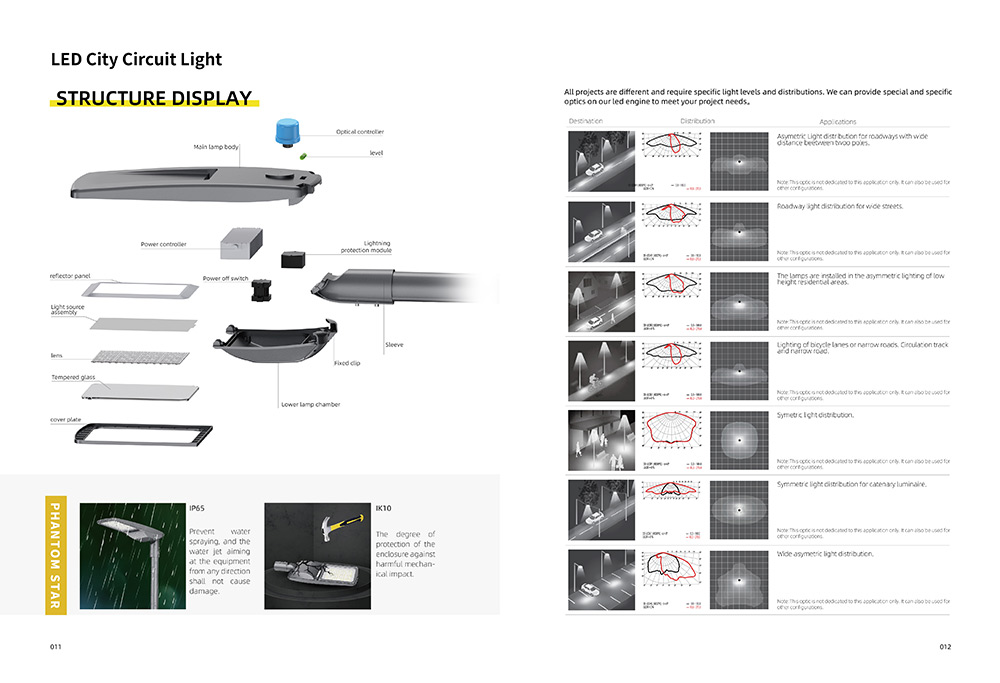

LED Street light Structure Display

Efficient

The Streetlight fighter range of luminaires is based on maximum efficiency-in terms of installation, service life and maintenance. And of course, in operation.
The new generation now functions up to 20 percent more efficiently.

High light output

In the latest generation, Streetlight EK-BL05 design get seven better 28 percent higher luminous flux, less light degradation, greater energy savings-with continued precise,glare-free lighting, The new generation now functions up to 20 percent more efficiently.

Veilig

Inconspicuous during the day, reliable and powerful at night: Streetlight features light distributions precisely matching their applications, from residential neighborhoods to freeways-a complete solution, and always conforming to standards.

Smart

Pioneering control concept also for the subsequent integration of tell management systems due to optional Smart interface compliant to Zhaga standard.

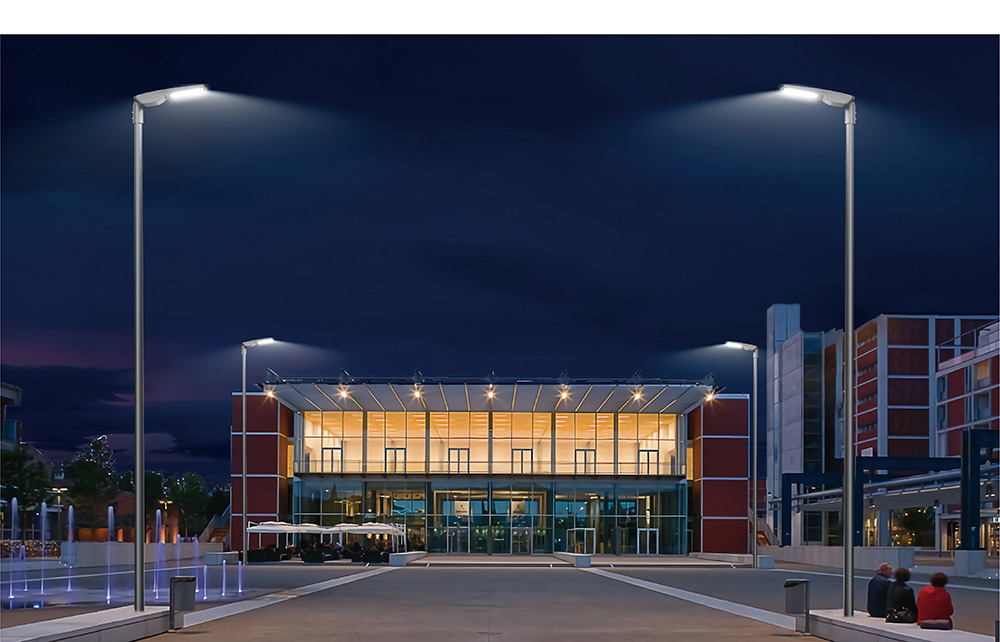

LED Street Light Application
